Honeywell Gas Pressure Regulators (former RMG)

• Gas Pressure Regualtors (GPR / GDR)

• Safety Shutt-off Valve (SSV / VAK / SAV)

• Safety Relief Valve (SRV / SBV)

• Gas Filter & Gas Leak Detection



Gas Pressure Regualtors for relatively small gas volumes:

200, 201, 213 (D36Hb), 214 (D114a) & 219 (D119a) with maximum inlet pressure of 350 bar and outlet presurre of  0.008 to 90 bar.

(no longer available models: 202, 210, 218, 265, 266, 267, 268 spare part, partially, still available)



HON 200 Gas pressure regulator indirect acting RMG 200

• Connection:  tube fitting (ISO 8434-1 / DIN 2253) for pipe diameter 18, 22, 25, 28, 38 of 42 mm, flange DN25, 40, 50 PN40 of #300, of 600
• Maximum inlet pressure 100 bar
• Outlet pressure 2 mbar tot 90 bar
• DIN EN 334





Downloads
Spec sheet:
HON-200-Brochure

HON 201 Gas pressure regulator indirect acting RMG 201

• • Connection:  inlet; tube fitting (ISO 8434-1 / DIN 2253) for pipe diameter 12, 16 of 18 mm, outlet: 18, 22, 25, 28, 38 of 42 mm
  • Maximum inlet pressure 100 bar
  • Outlet pressure 2 mbar tot 2 bar
  • DIN EN 334



Downloads
Spec sheet:
HON-201-Brochure

HON 213 (D36Hb) Gas pressure regulator direct acting RMG 213



• Connection: G3/8″
• Maximum inlet pressure 200 bar
• Outlet pressure  0.2 bar tot 50 bar
• Integrated safety relief valves (SRV / SBV)

Downloads
Spec sheet:
HON-213-Brochure

HON 214 (D 144a) Gas pressure regulator direct acting RMG 214

• • Connection: G1″
  • Maximum inlet pressure 350 bar
  • Outlet pressure  1 bar tot 70 bar
  • Integrated safety relief valves (SRV / SBV)
  • DIN EN 334







Downloads
Spec sheet:
HON-214-Brochure

HON 219 Gas pressure regulator direct acting RMG 219



• Connection: inlet: 3/4″, outlet tube fitting ISO 8434-1 (DIN 2353) for tube size 10, 12 or 16 mm
• Maximum inlet pressure 850 bar
• Outlet pressure  8 mbar tot 8 bar
• Integrated safety relief valves (SRV / SBV)
• DIN EN 334





DownloadsSpec sheet:
HON-219-Brochure



Gas pressure regulators for pressure rating to PN16 / #150:

300, 330, 370, 372 with a maximum inlet pressure of 20 bar and an outlet pressure of 0.01 tot 15 bar.

(models no longer in production: 300 HTB, 320, 324, 342, 361 spare parts are, partially still available)

HON 300 gas pressure regulator, direct acting RMG 300

• Gas pressure regulator, direct acting with safety shut-off valve (SSV / SAV)
• Diameter DN25
• Flanged PN16 or #150
• Maximum inlet pressure 16 bar
• Outlet pressure 20 mbar-2 bar
• Internal or external measuring connection (ICL / ECL)
• Optional safety diaphragm
• Optional integrated safety relief valve (SRV / SBV)





Downloads
Spec sheet:
HON-300-Brochure

HON 330 gas pressure regulator, direct acting RMG 330

• Opetional with safety shut-off valve (SSV / SAV)
• Diameter DN25, 50, 80, 100
• Flanged PN16 or #150
• Maximum inlet pressure 16 bar
• Outlet pressure 20 mbar-1 bar
• External measuring connection
• Optional safety diaphragm
• Optional integrated safety relief valve (SRV / SBV)







Downloads
Spec sheet:
HON-330-Brochure

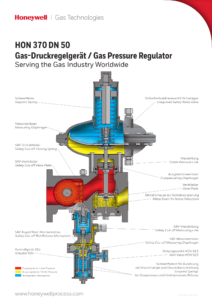

HON 370 gas pressure regulator, direct acting RMG 370

• Optional integrated safety shut-off valve (SSV / SAV)
• Diameter DN25, 50, 80, 100, 150
• Flanged connection PN16 or #150
• Maximum inlet pressure 16 bar
• Exhaust pressure 20 mbar – 4 bar
• Optional safety diaphragm
• optional integrated safety relief valve (SRV / SBV)
• DIN EN 334 / 14382







Downloads
Spec sheet:
HON-370-Brochure

HON 372 gas pressure regulator, indirect acting RMG 372

• Pilots: 610, 650, 650/1, 650/FE, 650/1/FE, 650/FS, 652, 655/DP, 658/EP
• Optional integrated safety shut-off valve (SSV / SAV)
• Diameter DN25, 50, 80, 100, 150
• Flanged connection PN16 or #150
• Maximum inlet pressure 16 bar
• Outlet pressure 10 mbar – 15 bar
• DIN EN 334 / 14382









DownloadsSpec sheet:
HON-372-brochure

HON 380 gas pressure regulator, indirect acting

• Optional integrated safety shut-off valve (SSV / SAV)
• Diameter DN25, 50, 80, 100
• Flanged connection PN16 or #150
• Maximum inlet pressure 16 bar
• Exhaust pressure 20 mbar – 5 bar
• DIN EN 334 / 14382

Downloads
Spec sheet:
HON-380-Brochure

Gas pressure regulators for pressure rating to PN40 / #300:

402 with a maximum inlet pressure of 50 bar and outlet pressure of 0.02 to 40 bar

No longer available models: 408, 409, 430, 470 (Krysalis), spares are still, partially, available.





HON 402 gas pressure regualtor, indirect acting RMG 402

• Pilots: 625, 630,630/1, 630/FE, 630/1/FE, 630/1/FS, 632, 632/1, 635/DP, 638/EP
• Optional integrated safety shut-off valve (SSV / SAV)
• Diameter DN25, 50, 80, 100
• Connection DN25/25, DN50/50, DN50/100, DN80/80, DN80/150, DN100/100, DN100/200
• Flanged PN16, 25, 40 or #150, 300
• Maximum inlet pressure 50 bar
• Outlet pressure 20 mbar – 40 bar
• DIN EN 334 / 14382







Downloads
Spec sheet:
HON-402-Brochure

Gas pressure regulators for pressure rating to PN100 / #600:

502, 503 5020, 512, 530 with a maximum inlet pressure of 100 bar and outlet pressure of 20 mbar to 90 bar



No longer available models: 500, 505, 512 (without “letter”), 530E-SG, 530P, spares are still, partially, available.







HON 502 pressure regulator, indirect acting RMG 502

• Pilots: 630,630/1, 630/FE, 630/1/FE, 630/1/FS, 632, 632/1, 635/DP, 638/EP
• Diameter DN25, 50, 80, 100, 150, 200
• Connection DN25/50, DN50/100, DN80/150, DN100/200, DN150/300, DN200/30
• Flanged PN40 or #300, 600
• Maximum inlet pressure 100 bar
• Outlet pressure 20 mbar – 90 bar
• DIN EN 334

Downloads
Spec sheet:
HON-502-Brochure

HON 503 pressure regulator, indirect acting RMG 503

• Pilots: 630,630/1, 630/FE, 630/1/FE, 630/1/FS, 632, 632/1, 635/DP, 638/EP
• Diameter DN25, 50, 80, 100, 150
• Connection DN25/25, DN25/50, DN50/100, DN80/150, DN100/200, DN150/300, DN200/300
• Flanged PN40 or #150 (DN25/25), 300, 600
• Maximum inlet pressure 100 bar
• Outlet pressure 300 mbar – 90 bar
• DIN EN 334 / 14382



Downloads
Spec sheet:
HON-503-Brochure

HON 5020 gas pressure regualtor, indirect acting RMG 5020

• Pilots: 625, 630, 630/1, 630/FE, 630/1/FE, 630/1/FS, 635/DP, 638/EP, 640a
• Optional integrated safety shut-off valve (SSV / SAV)
• Diameter DN25, 50, 80, 100, 150
• Connection DN25/25, DN25/50, DN50/50, DN50/100, DN80/80, DN80/150, DN100/100, DN100/200,  DN150/150, DN150/300
• Flanged PN16, 25, 40 of #150, 300, 600
• Maximum inlet pressure 100 bar
• Outlet pressure 20 mbar – 90 bar
• DIN EN 334 / 14382



Downloads
Spec sheet:
HON-5020-Brochure

HON 512 b/c gas pressure regulator, indirect acting RMG b/c

• Gas pressure regulator, pilot operated with safety shut-off valve (SSV)
• Diameter DN25, 50, 80, 100, 150, 200, 250
• Aansluiting: DN25/25, DN25/100, DN25/150, DN50/50, DN50/150, DN50/200, DN80/80, DN80/250, DN100/100, DN100/300, DN150/150, DN150/300, DN150/400, DN200/200, DN200/400, DN200/500, DN250/250, DN250/400, DN250/500, DN250/600
• Flanged PN16, 25, 40 or #150, 300, 600
• Maximum inlet pressure 100 bar
• Outlet pressure 300 mbar-90 bar
• DIN EN 334 / 1438t





Downloads
Spec sheet:
HON-512-Brochure

Gas volume control valve for pressure rating to PN100 (PN250) / #600, 900 (1500):



530-E, 530-E-WG with a maximum inlet pressure of 100 bar, outlet pressure of 8 mbar to 90 bar



HON 530-E Volume regelklep, electrisch aangedreven RMG 530-E

• Optional integrated Safety Shut-off Valve, until DN100/200 (SSV / SAV)
• Diameter DN50, 80, 100, 150, 200
• Conection DN50/100, DN80/150, DN100/200, DN150/300, DN200/300
• Flanged PN40 of #300, 600
• Maximum inlet pressure 100 bar
• Outlet pressure 8 mbar – 90 bar
• DIN EN 334 / 14382



Downloads
Brochure:
HON-530-E-Brochure

HON 530-E-WG Volume regelklep, electrisch aangedreven RMG 530-E-WG

• Optional integrated Safety Shut-off Valve, until DN100/200 (SSV / SAV)
• Diameter DN200, 250, 300, 400, 500
• Connection DN200/200, DN200/250, DN200/300, DN200/400, DN250/250, DN250/300, DN250/400, DN300/300, DN300/400, DN400/400, DN500/500
• Flanged #600,( 900)
• Maximum inlet pressure 100 bar
• Outlet pressure 8 mbar – 90 bar
• DIN EN 334 / 14382



Downloads
Brochure:
HON-530-E-WG DN200-400 Brochure

HON-530-E-WG DN500 Brochure



Pilots for indirect acting pressure regulators

610, 625, 630, 630-FE, 632, 635, 638, 638-EP, 630-1, 640a, 642a, 650, 650-FE, 651, 652, 655, 655-DP, 655-EP, 655-FE, 655-FE-DP, 656, 658-DP, 658-EP

no longer available models: 210,265, 620 spare parts are, partially, still available.



HON 610 (Rs10d) Pilot for various models RMG 610

• Outlet pressure control (optional inlet- and differential pressure)
• Maximum inlet pressure 100 bar
• Outlet pressure 1 mbar to 3.5 bar
• DIN EN 334







Downloads
Brochure:

HON-610-Brochure

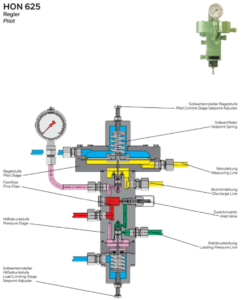

HON 625 Pilot for HON 402  RMG 625

• Outlet pressure control
• Maximum inlet pressure 25 bar
• Outlet pressure 2 mbar to 5 bar
• DIN EN 334





Downloads
Brochure:

HON-625-Brochure

HON 630-1 Pilot for diaphragm gas pressure regulators (former RMG 640)

• Outlet pressure control
• Maximum inlet pressure 100 bar
• Outlet pressure 300 mbar tot 90 bar
• DIN EN 334







Downloads
Brochure:
HON-630-1-Brochure



HON 630 Pilot for diaphragm gas pressure regulators RMG 630

• Outlet pressure control
• Maximum inlet pressure 100 bar
• Outlet pressure 300 mbar to 90 bar
• DIN EN 334





Downloads

Brochure:
HON-630-Brochure

HON 630-FE Pilot for diaphragm gas pressure regulators with electrical setpoint control RMG 630-FE

• • Outlet pressure control

• Maximum inlet pressure 100 bar
• Outlet pressure 300 mbar to 90 bar
• DIN EN 334

Downloads
Brochure:
HON-630-FE-Brochure

HON 638-EP Pilot for diaphragm gas pressure regulators with Electro pneumatische setpoint control RMG 638-EP

• Outlet pressure control
• Maximum inlet pressure 100 bar
• Outlet pressure 300 mbar tot 90 bar
• Input signal: 24V pulse
• Optional converter HON 100, 4-20 mA to 24V pulse
• DIN EN 334

Downloads
Brochure:
HON-638-EP-Brochure



HON 650 Pilot for various models RMG 650

• Outlet pressure control
• Maximum inlet pressure 100 bar
• Outlet pressure 300 mbar tot 90 bar
• DIN EN 334







Downloads
Brochure:
HON-650-Brochure



HON 651 Pilot for various models with electrical setpoint control RMG 651

• Based on the 650 pilot
• Outlet pressure control
• Maximum inlet pressure 100 bar
• Outlet pressure 500 mbar to 90 bar
• DIN EN 334

Downloads
Brochure:
HON-651-Brochure



HON 652 Pilot for various models RMG 652

• Inlet pressure control
• Maximum inlet pressure 100 bar
• Outlet pressure 300 mbar to 90 bar
• DIN EN 334







Downloads
Brochure:
HON-652-Brochure





HON 655-DP Pilot for various models RMG 655-DP

• Outlet- & differential pressure control
• Limitation of the flow through the differential pressure stage
• Maximum inlet pressure 100 bar
• Outlet pressure van 300 mbar to 90 bar
• Differential pressures of 5 mbar to 1.2 bar
• DIN EN 334

Downloads
Brochure:
HON-655-DP-Brochure



HON 655-EP Pilot for various models with electro pneumatic setpoint control RMG 655-EP

• Minimum outlet pressure control
• Limitation of the flow through the differential pressure stage
• Maximum inlet pressure 100 bar
• DIN EN 334

Downloads
Brochure:
HON-655-EP-Brochure





HON 655-FE Pilot for various models with electrical setpoint control RMG 655-FE

• Outlet pressure control
• Limitation of the flow through the differential pressure stage
• Maximum inlet pressure 100 bar
• Outlet pressure 300 mbar to 90 bar
• DIN EN 334

Downloads
Brochure:
HON-655-FE-Brochure







HON 658-DP Pilot for various models RMG 658-DP

• Between the minimum and maximum set outlet pressure the differential pressure in controlled.
• Maximum inlet pressure 100 bar
• Outlet pressure 300 mbar to 90 bar
• Differential pressures of 5 mbar to 1.2 bar
• DIN EN 334

Downloads
Brochure:
HON-658-DP-Brochure



HON 658-EP Pilot for various models with electro pneumatic setpoint control RMG 658-EP

• Outlet pressure control with automatic monitoring of the minimum and maximum outlet pressure
• Maximum inlet pressure 100 bar
• Outlet pressure 300 mbar to 90 bar
• DIN EN 334

Downloads
Brochure:
HON-658-EP-Brochure



Actuators for integrated safety shut-off valves (SSV / SAV)

670, 672, 673, 674



No longer available models: 672 (K12/K13), 673 (K1), 675 (K15), 680 spare parts are, partially, still available.



HON 670 (K16 & K18) RMG 670

• • Indirect acting

• Maximum inlet pressure 100 bar
• Set pressure (Who) between 0.8 & 90 bar
• DIN EN 14382





Downloads
Brochure:
HON-670-Brochure

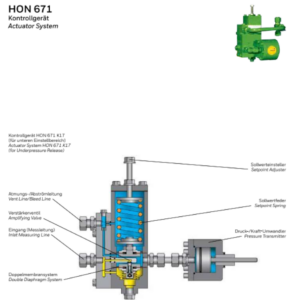

HON 671 (K17 & K19) RMG 671

• Indirect acting
• Maximum inlet pressure 100 bar
• Set pressure (Whu) between 2 & 40 bar
• DIN EN 14382





Downloads
Brochure:
HON-671-Brochure

HON 672 (K10a, K11a/1, K11a/2) RMG 672

• Direct acting
• Maximum inlet pressure 100 bar
• Over pressure range (Wdso) 50 mbar to 8 bar, under pressure range (Wdsu) t 10 mbar to 2.2 bar
• DIN EN 14382







Downloads
Brochure:
HON-672-Brochure

HON 673 (K1, K1a, K2a, K2a/1, K2a/2, K2b) RMG 673

• Direct acting
• Maximum inlet pressure 16 bar (HON 703/704 100 bar)
• Over pressure range (Wdso) 50 mbar to 8 bar, under pressure range (Wdsu) 10 mbar to 2.2 bar
• DIN EN 14382





Downloads
Brochure:
HON-673-Brochure

HON 674 (K4, K5, K6) RMG 674

• Direct acting
• Maximum inlet pressure 25 bar (HON 703/704 100 bar)
• Over pressure range (Wdso) 40 mbar to 4.5 bar, under pressure range (Wdsu) 5 mbar to 300 mbar
• DIN EN 14382





Downloads
Brochure:
HON-674-Brochure

Independant Safety Shut-off Valve (SAV / SSV)

703, 704, 711, 720, 721, 750, 790













No longer available models: 706, 710,  730, 731 Spare parts are, partly, still avaialble



HON 703 Safety shut-off valve, direct & indirect acting RMG 703

• Diameter DN25
• Connection 10, 12, 16, 18, 22, 25, 28, 38, 42 mm pipe DIN 2353, DN25, 40 & 50 flange
• Flanged PN25, 40 or #300, 600
• Pipe PN100
• 2 independent acting safeties in 1 body
• Applicable actuators: HON 670, 671 & 673
• Maximum inlet pressure 100 bar
• Over pressure range (Wdso) 50 mbar tot 90 bar, under pressure range (Wdsu) 10 mbar tot 90 bar
• DIN EN 1438

Downloads
Brochure:
HON-703-Brochure

HON 704 Safety shut-off valve, direct & indirect acting RMG 704

• Diameter DN25
• Connection 10, 12, 16, 18, 22, 25, 28, 38, 42 mm pipe DIN 2353, DN25, 40 & 50 flange
• Flanged PN25, 40 of #300, 600
• Pipe PN100
• Applicable actuators: HON 670 & 673
• Maximum inlet pressure 100 bar
• Over pressure range (Wdso) 50 mbar tot 90 bar, under pressure range (Wdsu) 10 mbar tot 90 bar
• DIN EN 1438

Downloads
Brochure:
HON-704-Brochure

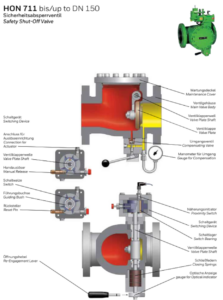

HON 711 Safety shut-off valve, direct & indirect acting RMG 711

• Diameter DN25, 50, 80 ,100, 150, 200, 250, 300
• Flanged PN25, 40 of #300, 600, 900
• Applicable actuators: HON 670, 671 & 673
• Maximum inlet pressure 100 bar
• Over pressure range (Wdso) 50 mbar tot 90 bar, under pressure range (Wdsu) 10 mbar tot 90 bar
• DIN EN 14382





Downloads
Brochure:
HON-711-Brochure

HON 711 S2 Safety shut-off valve, direct & indirect acting RMG 711 S2

• Diameter DN25, 50, 80 ,100
• Flanged PN25, 40 of #300, 600
• Applicable actuators: HON 670 & 671
• Maximum inlet pressure 100 bar
• Over pressure range (Wdso) 2 bar tot 90 bar, under pressure range (Wdsu) 4 bar tot 90 bar
• DIN EN 14382







Downloads
Brochure:
HON-711-S2-Brochure

HON 720 Safety shut-off valve, direct & indirect acting RMG 720

• • Diameter DN25, 50, 80 ,100
  • Flanged PN16 (DN25) PN25, 40 of #150
  • Applicable actuators: K1a, K2a, K3, K4, K5, K6, K16
  • Maximum inlet pressure 16/25 bar

• Over pressure range (Wdso) 40 mbar tot 4.5 bar, under pressure range (Wdsu) 5 mbar tot 400 mbar
• DIN EN 14382













Downloads
Spec sheet:
HON-720-Brochure

HON 721 Safety shut-off valve, direct & indirect acting RMG 721

• Diameter DN50, 80 ,100, 150
• Flanged PN16, 25, 40 of #150, 300
• Maximum inlet pressure 50 bar
• Over pressure range (Wdso) 30 mbar tot 40 bar, under pressure range (Wdsu) 10 mbar tot 40 bar
• DIN EN 14382





Downloads
Spec sheet:
HON-721-Brochure

HON 750 Safety shut-off valve, direct acting  RMG 750

• Diameter DN25, 50, 80 ,100
• Flanged PN16, 40 of #150
• Maximum inlet pressure 40 bar
• Actuation: solenoid valve
• Certification: marine (DNV GL, ABS, BV, LR), SIL3
• EN 16678, EN 161, EN 13611, EN 334

Downloads
Brochure:
HON-750-Brochure

HON 790 Safety shut-off valve, direct acting for water systems of gas pre heaters RMG 790

• Diameter DN25, 50, 80 ,100, 150, 200
• Wafer for flanges with rating PN10/16, 25, 40 of #150, 300, 600, 900
• Maximum inlet pressure 40 bar
• Set pressure between 2 bar tot 16 bar
• DIN EN 14382

Downloads
Brochure:
HON-790-Brochure

Safety relief (SRV / SBV / PRV)

832, 835, 873

HON 832 Safety relief valve (SRV, SBV), direct acting RMG 832

• Connection: pipe fitting DIN EN ISO 8434-1, inlet 12mm, outlet 16, 20, 25 & 28 mm
• Maximum inlet pressure 100 bar
• Set pressure range 0,5 tot 30 bar
• Proportional type A DIN 33821 (with vent line)
• Leakage gas type B DIN 33821





Downloads
Spec sheet:
HON-832-Brochure

HON 835 Safety relief valve (SRV, SBV), direct acting RMG 835

• Diameter 1″
• Connection:  pipe fitting DIN EN ISO 8434-1, 12mm (RE0), 28 mm (RE1&2), G1” (internal thread)
• Maximum inlet pressure 25 bar
• Set pressure range 5 mbar tot 2 bar
• Leakage gas type B DIN 33821



Downloads
Spec sheet:
HON-835-Brochure

Gas filter

905, 906, 906a, 907

HON 905 Fine mesh filter for auxiliary gas RMG 905

• Maximum pressure 100 bar
• Filter approx. 5 µm
• Connection  pipefitting DIN EN ISO 8434-1: 10 mm
• dp new filter 0.1 bar
• dp soiled filter ca. 1 bar

Downloads
Brochure:
HON-905-Brochure

HON 906 Gas filter / Cellular filter for dry gasses RMG 906

• Diameter: DN 25, 50, 80, 100, 150
• Flanged PN16
• Filter area: 0.5, 0.193, 0571, 0.933, 2.256 m³
• Filter options: 1) standard >10µm, 2) Polyester reinforced >4 µm, 3) fine >2 µm
• Filter efficiency 99%

Downloads
Brochure:
HON-906-Brochure

HON 906a Gas filter / Cellular filter for dry gasses RMG 906a

• Enlarged “dust” collection area
• 2 fold ” seperation
• Optional magnet
• Diameter: DN 25, 50, 80, 100
• Flanged PN16, PN25 of #150
• Filter are: 0.5, 0.193, 0571, 0.933, 2.256 m³
• Filter options: 1) standard >10µm, 2) Polyester reinforced >4 µm, 3) fine >2 µm
• Filter efficiency 99%

Downloads
Brochure:
HON-906a-Brochure

HON 907 Gas filter / Cellular filter for dry gasses RMG 907

• Angle pattern
• Diameter: DN 25, 50, 80, 100
• Flanged PN16
• Filter area: 0.5, 0.193, 0571, 0.933, 2.256 m³
• Filter options: 1) standard >10µm, 2) Polyester reinforced >4 µm, 3) fine >2 µm
• Filter efficiency 99%









Downloads
Brochure:
HON-907-Brochure

Various accessories for gas pressure regulators

900, 901, 910a, 911a, 915, 917, 919, 925, 981, 983, 985

No longer available models: 916, 920 spare parts are still, partially available

HON 900 Electrical gas pre-heater RMG 900

• Maximum pressure 100 bar
• Voltage 230V 50Hz
• Power consumption 150 W
• Gas outlet temperature is dependent of the pressure and speed
• Explosion proof II 2 G Eex de IIC T6
• Connection: pipefitting DIN EN ISO 8434-1: 10 mm

Downloads
Brochure:
HON-900-Brochure



HON 901 Pneumatic gas pre-heater RMG 901

• Maximum pressure 100 bar
• Gas outlet temperature >15°C
• Connection:  pipe fitting DIN EN ISO 8434-1: 10 & 12 mm
• Applicable if the inlet pressure = 2* outlet pressure + 5 (barg)

Downloads
Brochure:
HON-901-Brochure



HON 910a Self closing “normaly closed” manual valve RMG 910a

• Used to equalize the pressure with a Safety Shut-off Valve (SSV/SAV)
• Maximum pressure 100 bar
• Connection: pipe fitting DIN EN ISO 8434-1: 10 & 12 mm

Downloads
Brochure:
HON-910a-Brochure

HON 911a Self closing “normaly open” manual RMG 911a

• Application: test of the safety shut-off valves (SSV/SAV) and the safety relief valves (SRV)
• Maximum pressure 100 bar
• Connection: pipe fitting DIN EN ISO 8434-1: 12 mm
• 2 Minimess 1215 DN2 connection for high pressure
• Optional 3 way ball valve to test the pressure before and after the start up ball valve

Downloads
Brochure:
HON-911a-Brochure

HON 912 3 way manual valve RMG 912

• To manually operate the integrated safety shut-of valves (SAV / SRV)
• With DIN EN 334 / 14382 regulators it is a standard part
• Maximum pressure 100 bar
• Connection: pipe fitting DIN EN ISO 8434-1: 10 & 12 mm

Downloads
Brochure:
HON-912-Brochure

HON 914 Test valve for safety shut-off valves & safety relief valves (SSV/SAV, SRV/SBV) RMG 914

• Application: simulate a drop in pressure for an integrated SSV
• The SSV or SRV will operate when required during testing
• Maximum pressure 100 bar
• Connection: pipe fitting DIN EN ISO 8434-1: 12 mm
• 2 Minimess 1215 DN2 connection for high pressure

Downloads
Brochure:
HON-914-Brochure

HON 915 vent valve RMG 915

• “Replaces” vent lines to the atmosphere
• Limits the leakage of gas to the preset value (30, 70, 150 l/h) from measuring / compensation diaphragm chambers.
• Limits the leakage of gas to the preset value when the diaphragm fails (type A EN14382) with direct acting actuators in combination with a SSV that acts on under pressure.
• Maximum pressure 100 bar
• Connection G3/8, G1/2 or M16*1.5
• PED-CE & GAD-CE combined with Honeywell products

Downloads
Brochure:
HON-915-Brochure

HON 917 Leak gas indicator RMG 917

• Application: safety relief valves (SRV/SBV type B DIN 33821) direct of indirect acting: HON 670, 832, 835, 873.
• Gives a visual indication if the safety is or has been in operation
• Optional reed contact for remote indication
• Integrated overpressure safety
• Maximum pressure 100 bar (5 bar for G 1”)
• Maximum flow 125 l/h natural gas
• Connection: G 1″ (EN 10226 -1 of ISO 7-1)), 10, 12, 16, 20, 22,25 &28 mm (pipe fitting EN ISO 8334-1)





Downloads
Brochure:
HON-917-Brochure

HON 919 on/off  or switch valve RMG 919 (919-1, 919-2)

• Diaphragm break safety for K 1a, K 2a, K 4, K 5, K 6, K 10a, K 11a, K 12, K 13
• Closes the SSV if the diaphragm gets damaged
• Connection: inlet G 1/2” of M16*1.5, outlet 10 mm  pipe fitting EN ISO 8434-1

Downloads
Brochure:
HON-919-Brochure

HON 925 Over pressure safety / shut-off valve RMG 925

• Application:  pressure gauges
• Range: 0.6, 1, 1.6, 2.5, 4, 6, 10, 16 & 25 bar
• Connection: inlet 10 & 12 mm pipe fitting EN ISO 8434-1, outlet 10 & 12 mm pipe fitting EN ISO 8434-1 of G ¼” ISO 228

Downloads
Brochure:
HON-925-Brochure

Gas Odorization units

• GOE 07
• GOE-S01/GOE-S01P

No longer available: GOE 2000



GOE 07

• Operating principle: “suction” methode
• Volume dependent diaphragm pump
• Integrated hand pump to easily refill the exchangeable odorant tank
• Exchangeable tank according DIN 30650
• With 5 (l) spare tank
• Maximum back pressure 40 bar
• Odorising up to 100.000 Nm3/h (dependent on the concentration)
• Delivered plug & play on a mounting plate
• Various options possible

Downloads
Brochure:
HON-GOE07-Brochure



GOE-S01/GOE-S01P

• Fixed tank (200 – 1200 liter)
• Injection principle
• Volume dependent diaphragm pump
• Flexible adjustment odorant concentration
• Tank filling without interrupting the process.
• Maximum back pressure 80 bar
• Odorizing up 250.000 Nm3/h (dependent on the concentration)

Downloads
Brochure:
HON-GOE-S01-Brochure
HON-GOE-S01P-Brochure

Odeur control unit

OCS 2020/2030

Downloads
Brochure:
HON-OCS 2020/2030-Brochure

no longer available OSG 2000, 7 EU-4

RMG flowmeters

• Rotary
  RMG 130 = Z01-A
  MG 132-A
  DKZ 04





• Turbine
  TRZ 03
  TRZ 03-L
  TRZ 03-TE/TEL
  TRZ 03-K





• Ultrasonic
  USZ 08







• Vortex
  WBZ 08
  WZ 07





• Volume converter
  TERZ 91







• Flow computer
  EC 21
  EC 24
  EC 694
  EC 994
  ERZ 2000
  ERZ 2200
  ERZ 900 “Turbo”



• Bovenliggend controle systeem
  FE 06
  FE-09





• Gas analyzers / Chromatograph
  PGC 900 VC
  PGC 900 BBQ





• Caloric value
  EMC 500







• Encoder
  ENCO-F/M







• Data logger
  DS 900
  DS 901





• Tel systeem
  CS 900







• Puls transmitter
  IG 02







• Ruimte verwarming
  RHZ 02 -SH 800







• Registratie
  MRG 800
  MRG 905
  MRG 910
  MRG 2100
  MRG 2200
  MRG 2203



• Data logging & registratie
  TW 2101

RMG flame arrestors

RMG 930
RMG 932
RMG 933
RMG 934
